Reliable Pharmaceutical Vial Sealing Starts at the Rubber Stopper
A rubber stopper is one of the most critical components in a pharmaceutical vial system. Poor dimensional consistency can cause difficult stoppering, inadequate compression, crimping variation, or unreliable fit with the vial neck. Material incompatibility can create an even larger qualification problem.
Supply-Packagings supplies pharmaceutical butyl rubber vial stoppers for injection vials, penicillin bottles, lyophilized products, diagnostics, and other compatible pharmaceutical packaging systems.

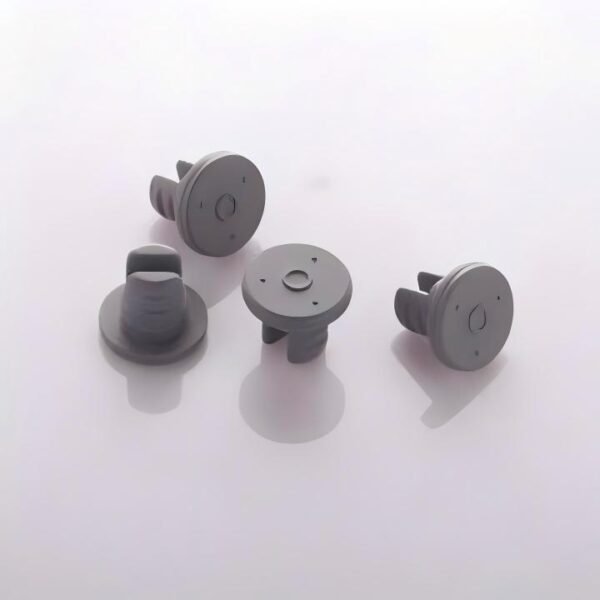

The stopper style shown features a disc-shaped flange with molded legs or plugs underneath, a structure commonly associated with pharmaceutical vial and lyophilization closure applications. Exact design and suitability are confirmed against the buyer’s vial, process, and product requirements.
Key Product Benefits
◆ Bromobutyl and chlorobutyl rubber options for pharmaceutical packaging programs
◆ Injection and lyophilization stopper configurations available
◆ Precision-molded flange and leg dimensions for consistent vial seating
◆ Compatible with standard pharmaceutical crimp-neck vial systems
◆ Coated, treated, or siliconized configurations can be evaluated by project
◆ Matching glass vial and aluminum flip-off cap supply reduces tolerance mismatch
◆ Multiple sizes available for common pharmaceutical neck finishes
◆ OEM and ODM support for project-specific stopper specifications and packing
◆ Factory-direct manufacturer and wholesale supplier for international custom packaging procurement
Product Overview
Pharmaceutical rubber stoppers are elastomeric closures designed to seal compatible glass vials before an aluminum crimp seal is applied.
Depending on the structure, they may be used for:
- Injectable liquid vial systems
- Lyophilized powder packaging
- Penicillin bottles
- Diagnostic reagent vials
- Veterinary pharmaceutical products
- Laboratory and clinical packaging
The stopper normally consists of a broad flange sitting over the vial mouth and one or more molded legs that engage with the neck opening.
Common purchasing terms include:
- Butyl rubber stopper
- Pharmaceutical vial stopper
- Injection vial stopper
- Lyophilization stopper
- Freeze-drying stopper
- Penicillin bottle rubber stopper
- Serum vial stopper
Injection and Lyophilization Stopper Options
Injection Vial Stoppers
Conventional injection stoppers are designed to be seated fully into the vial neck before crimping. The flange provides the sealing interface and supports compression beneath the aluminum closure.
Lyophilization Stoppers
Freeze-drying stopper designs can incorporate legs, channels, or partial-seating geometry that allows water vapor to escape during the lyophilization cycle.
After drying is complete, the stopper is fully seated inside the chamber according to the validated process.
The Difference Matters
A standard stopper should not automatically be substituted for a lyophilization stopper. Geometry, rubber formulation, processing method, and compatibility with the filling equipment must be selected according to the intended pharmaceutical process.
How the Complete Vial Closure System Works
Vial Filling
The drug or compatible product is filled into a suitable pharmaceutical glass vial.
Stopper Placement
For liquid products, the stopper may be fully seated according to the filling process. For lyophilization applications, a suitable stopper may initially be partially seated to permit vapor removal.
Final Stoppering
After processing, the stopper is fully seated and compressed against the vial finish.
Aluminum Crimping
An aluminum seal or aluminum-plastic flip-off cap is crimped around the vial flange, mechanically retaining the rubber stopper.
The final closure performance depends on all three primary components: vial, stopper, and crimp seal.
Solving Common Stopper Sourcing Problems
Stopper Is Too Tight or Too Loose
Even small differences in plug diameter or vial bore can affect insertion force, seating, and compression.
We recommend evaluating the stopper against actual production vials rather than relying on nominal diameter alone.
Stopper Pops Up After Seating
Potential factors include stopper geometry, vial dimensions, elastomer characteristics, insertion conditions, and processing parameters. Component matching and line trials help identify the correct specification.
Needle Puncture Performance Is Inconsistent
Needle penetration, fragmentation, and reseal behavior depend on stopper formulation, thickness, surface treatment, needle type, and puncture conditions.
These requirements should be established during pharmaceutical qualification.
Stopper Sticks During Filling-Line Handling
Surface characteristics can affect bowl feeding and insertion equipment. Siliconized or coated configurations may be considered depending on the application.
Stopper and Flip-Off Cap Do Not Work Together
The stopper flange height affects final crimp compression. Supply-Packagings can coordinate stoppers with glass vials and aluminum or aluminum-plastic caps to reduce cross-supplier tolerance conflicts.
Rubber Material Options
Bromobutyl Rubber
Bromobutyl elastomers are widely used in pharmaceutical closure systems where low permeability and suitable chemical resistance are required.
Chlorobutyl Rubber
Chlorobutyl options are also used extensively for vial stoppers and other pharmaceutical closures.
Surface-Treated Options
Depending on the product and process, stopper configurations may include:
- Siliconized surfaces
- Coated surfaces
- Reduced-friction treatments
- Project-specific barrier treatments
Material selection must be based on the intended formulation, processing conditions, sterilization method, extractables and leachables requirements, and regulatory strategy.
Technical Specifications
| Parameter | Available Options |
|---|---|
| Product Type | Pharmaceutical rubber vial stopper |
| Material | Bromobutyl / chlorobutyl rubber |
| Stopper Style | Injection stopper / lyophilization stopper |
| Color | Grey and project-specific colors |
| Common Sizes | 13 mm / 20 mm and additional vial specifications |
| Structure | Flange with molded plug or lyophilization legs |
| Surface Treatment | Untreated, siliconized, coated options by project |
| Compatible Container | Pharmaceutical crimp-neck glass vial |
| Compatible Seal | Aluminum crimp seal / aluminum-plastic flip-off cap |
| Application | Liquid vial, freeze-dried product, diagnostic packaging |
| MOQ | Depends on material, dimensions, treatment, and packing |
| Samples | Available for compatible standard specifications |
| Packaging | Sealed clean inner bags and export cartons |
| Shipping | Sea, air, express |
| Trade Terms | FOB, CIF, DDP depending on destination |
Exact formulation, dimensions, sterilization status, cleanliness, surface treatment, processing requirements, and documentation are confirmed individually for pharmaceutical projects.
Functional Design Features
Top Flange
The broad flange sits against the vial lip and provides the primary compression surface beneath the crimped aluminum closure.
Plug or Leg Structure
The lower portion enters the vial neck and helps position the stopper. Lyophilization designs may incorporate specialized leg geometry for vapor flow during freeze drying.
Central Puncture Zone
The stopper top is engineered with a defined central area for appropriate access in compatible pharmaceutical applications.
Controlled Elastomer Compression
Correct compression contributes to container closure performance. Excessive or insufficient compression may create sealing or processing problems.
Applicable Industries
⚕ Pharmaceutical Containers — injectable liquids, freeze-dried products, penicillin vial systems
🧪 Biotechnology — biological preparations, research reagents, and compatible laboratory products
🔬 Diagnostics — controls, reagents, reference materials, and testing components
🐾 Veterinary Pharmaceuticals — compatible injectable and lyophilized veterinary products
🏥 Contract Manufacturing — pharmaceutical filling, freeze drying, stoppering, and crimping facilities
🧴 Professional Cosmetic Packaging — selected vial-style formulations where pharmaceutical-style closures are appropriate
Application Scenarios
✚ Liquid injection vial stoppering
✚ Lyophilization and freeze-drying processes
✚ Penicillin bottle closure systems
✚ Diagnostic reagent vial packaging
✚ Multi-vial clinical and laboratory kits
✚ Veterinary vial packaging
✚ Complete vial systems combining stopper, glass bottle, and flip-off closure
Product Advantages
Matched Vial System Development
A stopper should never be treated as an isolated component. Supply-Packagings can coordinate the stopper with the vial neck and crimp closure to reduce tolerance-related qualification issues.
Options for Liquid and Freeze-Dried Products
Injection stopper and lyophilization configurations allow buyers to source according to their actual process rather than adapting an unsuitable generic closure.
Material Choices for Technical Qualification
Bromobutyl, chlorobutyl, surface-treated, and coated options allow pharmaceutical buyers to evaluate the closure according to formulation and process requirements.
OEM and ODM Support
OEM programs can use established stopper specifications with project-specific packing or treatment requirements. ODM development can be evaluated where high-volume programs require specialized dimensions or structures.
One Supplier for Broader Packaging Programs
Supply-Packagings supports vial closures alongside pharmaceutical bottle packaging, aluminum caps, jar packaging, supplement packaging, flexible pouch formats, and paper cartons for buyers consolidating their custom packaging supply chain.
Quality Control
Depending on project requirements, inspection can include:
✅ Flange diameter and thickness checks
✅ Plug or leg dimensional inspection
✅ Visual inspection for molding defects and contamination
✅ Fit evaluation against approved vial samples
✅ Stopper and aluminum cap stack-height evaluation
✅ Surface treatment verification according to specification
✅ Packing cleanliness checks
✅ Batch identification and traceability
For injectable and sterile pharmaceutical use, the buyer must qualify the complete packaging system through appropriate chemical, functional, microbiological, extractables and leachables, container closure integrity, and stability studies.
Packaging and Logistics
Clean Packing
Stoppers can be supplied in sealed inner bags and reinforced export cartons. Packing specifications can be adapted to the customer’s downstream washing, sterilization, filling, and production workflow where appropriate.
Cleanliness and sterilization status must be explicitly defined in the purchasing specification and should never be assumed from appearance alone.
Global Shipping
Sea freight supports large wholesale quantities, air freight is available for urgent programs, and express courier is normally used for samples and qualification lots. DDP delivery can be evaluated for selected markets.
Frequently Asked Questions
Q1. What type of stopper is shown in the image?
The image appears to show a pharmaceutical rubber stopper with a flange and molded leg structure. This geometry is often associated with vial or lyophilization applications. Exact use should be confirmed from dimensions and technical specifications.
Q2. What is the difference between bromobutyl and chlorobutyl?
Both are halobutyl elastomers widely used in pharmaceutical closures. The appropriate selection depends on formulation compatibility, processing, permeability targets, and qualification requirements.
Q3. Can you supply lyophilization stoppers?
Yes. Freeze-drying stopper structures can be supplied for compatible vial systems and should be validated on the buyer’s lyophilization process.
Q4. Can you provide 13 mm and 20 mm sizes?
Yes. These are common pharmaceutical vial closure sizes. Other specifications can also be evaluated.
Q5. Can you supply the aluminum flip-off caps too?
Yes. We can coordinate the rubber stopper, aluminum or aluminum-plastic cap, and glass vial as one system.
Q6. Can you provide pharmaceutical glass vials?
Yes. Clear and amber vial options are available for matching projects.
Q7. Are these stoppers supplied sterile?
Sterility should not be assumed. Sterile, ready-to-sterilize, or other processing conditions depend on the specific product and purchasing specification. Requirements must be confirmed before ordering.
Q8. How do I confirm stopper compatibility with my vial?
Send the vial drawing, neck dimensions, existing stopper specification, or physical samples. Fit and process qualification should then be performed using the final production components.
Buyer Feedback
★★★★★ Better stopper fit reduced line adjustments
“We matched the stopper to our vial dimensions before production. Seating became more consistent and the crimping process required fewer adjustments.”
— Packaging Engineer, Contract Manufacturer
★★★★★ Lyophilization samples performed consistently in our trials
“We evaluated several stopper geometries before selecting one for validation. The matched vial and closure set simplified our qualification process.”
— Development Manager, Biotechnology Company
★★★★★ Consolidating components simplified purchasing
“Buying the vial, rubber stopper, and flip-off closure from one source reduced the number of dimensional compatibility checks we had to manage.”
— Procurement Lead, Healthcare Supplier
Related Product Categories
- Pharmaceutical Rubber Stoppers
- Lyophilization Stoppers
- Bromobutyl Rubber Stoppers
- Chlorobutyl Rubber Stoppers
- Pharmaceutical Glass Vials
- Penicillin Bottles
- Aluminum Flip-Off Caps
- Aluminum Crimp Seals
- Pharmaceutical Containers
- Bottle Packaging
- Supplement Packaging
- Jar Packaging
- Flexible Packaging
- Pharmaceutical Folding Cartons
- Custom Packaging Services
Visit our products page for complete packaging development support.
Request the Correct Stopper for Your Vial and Process
Send your vial neck size, vial drawing or physical sample, stopper diameter if known, application type, processing method, expected quantity, and destination market. For freeze-drying applications, include your current stopper configuration and process requirements so the correct geometry can be evaluated.
Supply-Packagings provides OEM, ODM, factory-direct wholesale supply and coordinated custom packaging across pharmaceutical stoppers, vials, bottle components, aluminum caps, jars, pouches, and secondary cartons. For technical matching, samples, MOQ, lead time, and international logistics, Contact Us.
